Swallow Tail Profile Canal Opening Machine

Swallow Tail Profile Canal Opening Machine

Explanation

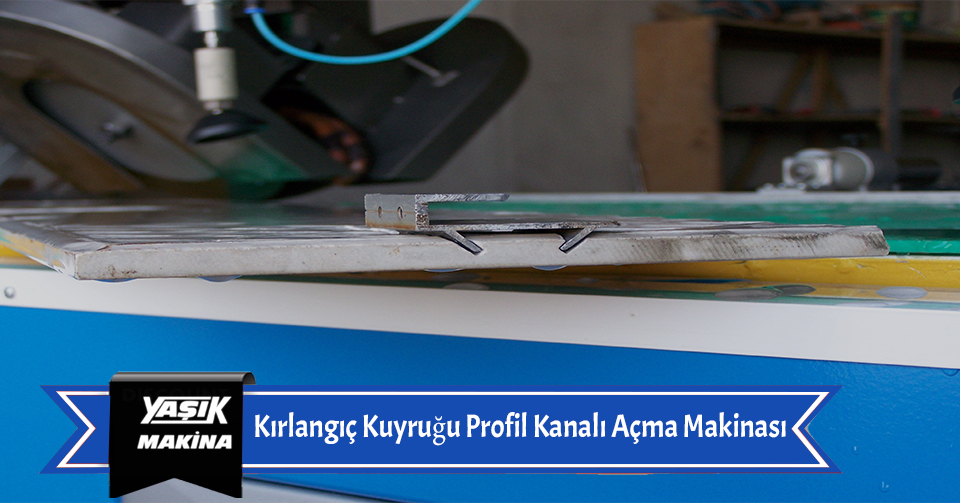

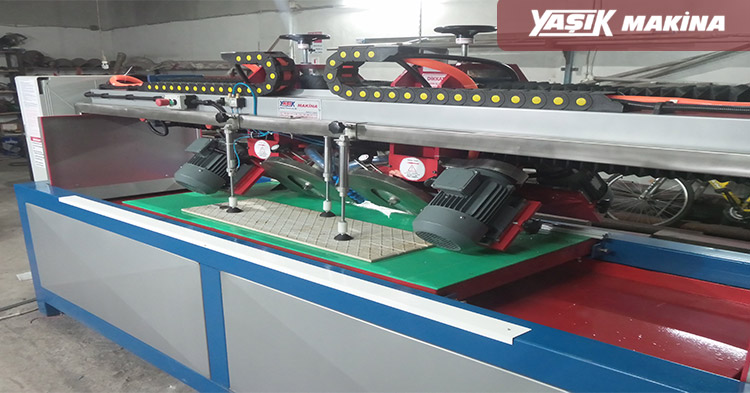

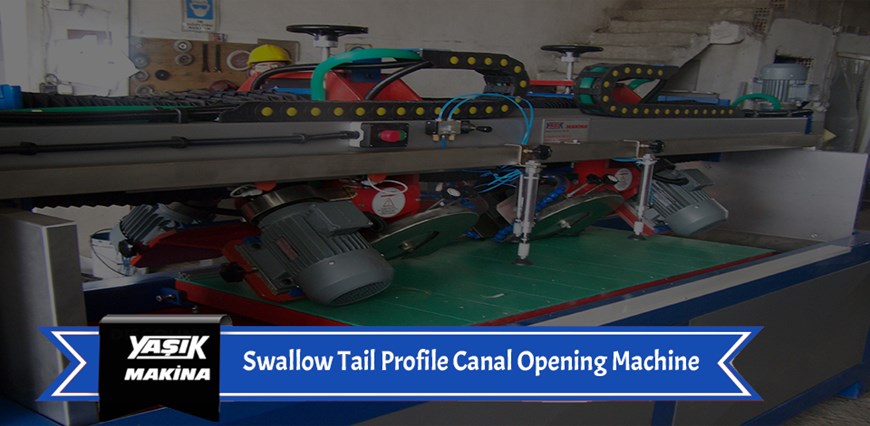

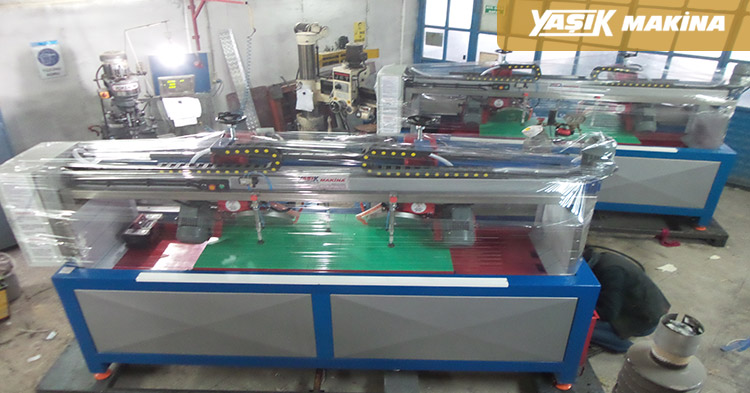

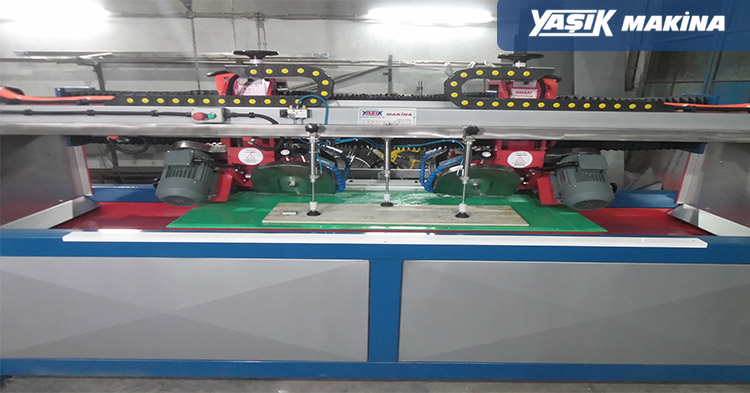

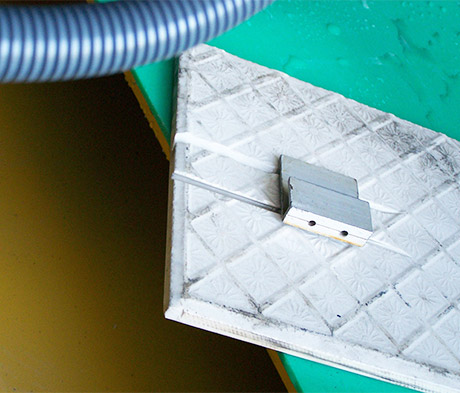

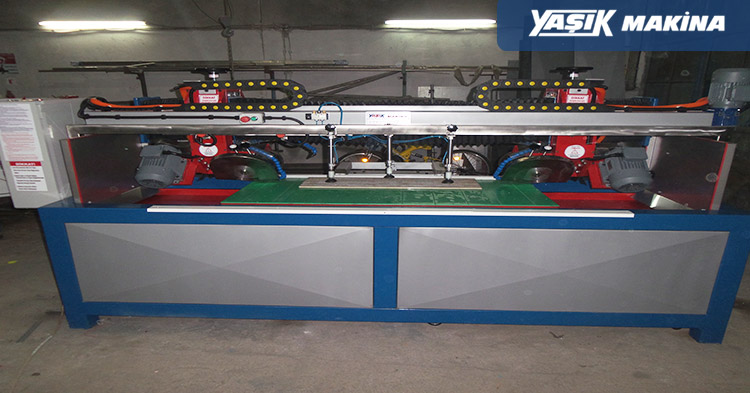

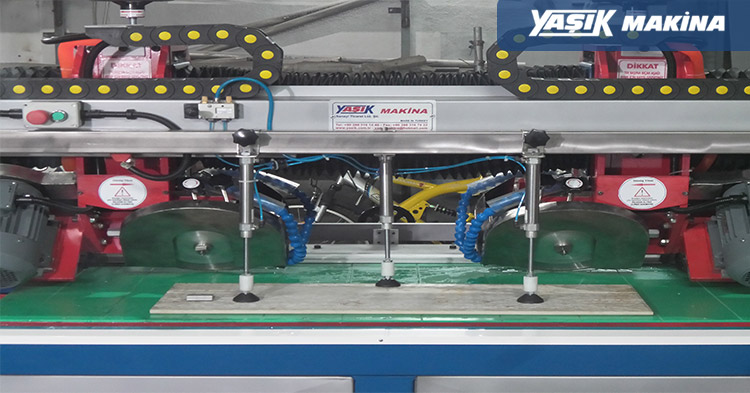

Invisible System clip opening machine (4 cutting blades open 4 channels at the same time, therefore the capacity is very high).

Technical specifications

Machine Length: 3500 mm.

Machine Eni: 1200 mm

Machine height: 1700 mm

the feed-forward cutting speed can be adjusted.

Wet Cutting: Closed system minimum water consumption

Capacity: max: 50-55 pcs / h (exterior cladding)

Cutting Dimensions: 60x60 cm 80x80cm, 60x120 cm 90x135cm and all intermediate dimensions can be adjusted.

Cutting Knife Diameter: 300 mm (with diamond tip)

Material handling: Pneumatic system

Total Engine Power: 7 kW

Note: The banded system can be made in production if requested.

Note: USEFUL MODEL PATENT LIFE MACHINE'S FIND.

Yaşık Makina kırlangıç kuyruğu makinası 1 Yaşık Makina kırlangıç kuyruğu makinası 2 Yaşık Makina kırlangıç kuyruğu makinası 3 Yaşık Makina kırlangıç kuyruğu makinası 4 Yaşık Makina kırlangıç kuyruğu makinası 5 Yaşık Makina kırlangıç kuyruğu makinası 6

Contact us for detailed information about Machinery and Spare Parts!
